Chainflex 3G-OTH-54223 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54223 CHAINFLEX Control Cable: 16 AWG, 25 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF9-UL-15-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: IPA 14644-1.
Brand: Chainflex

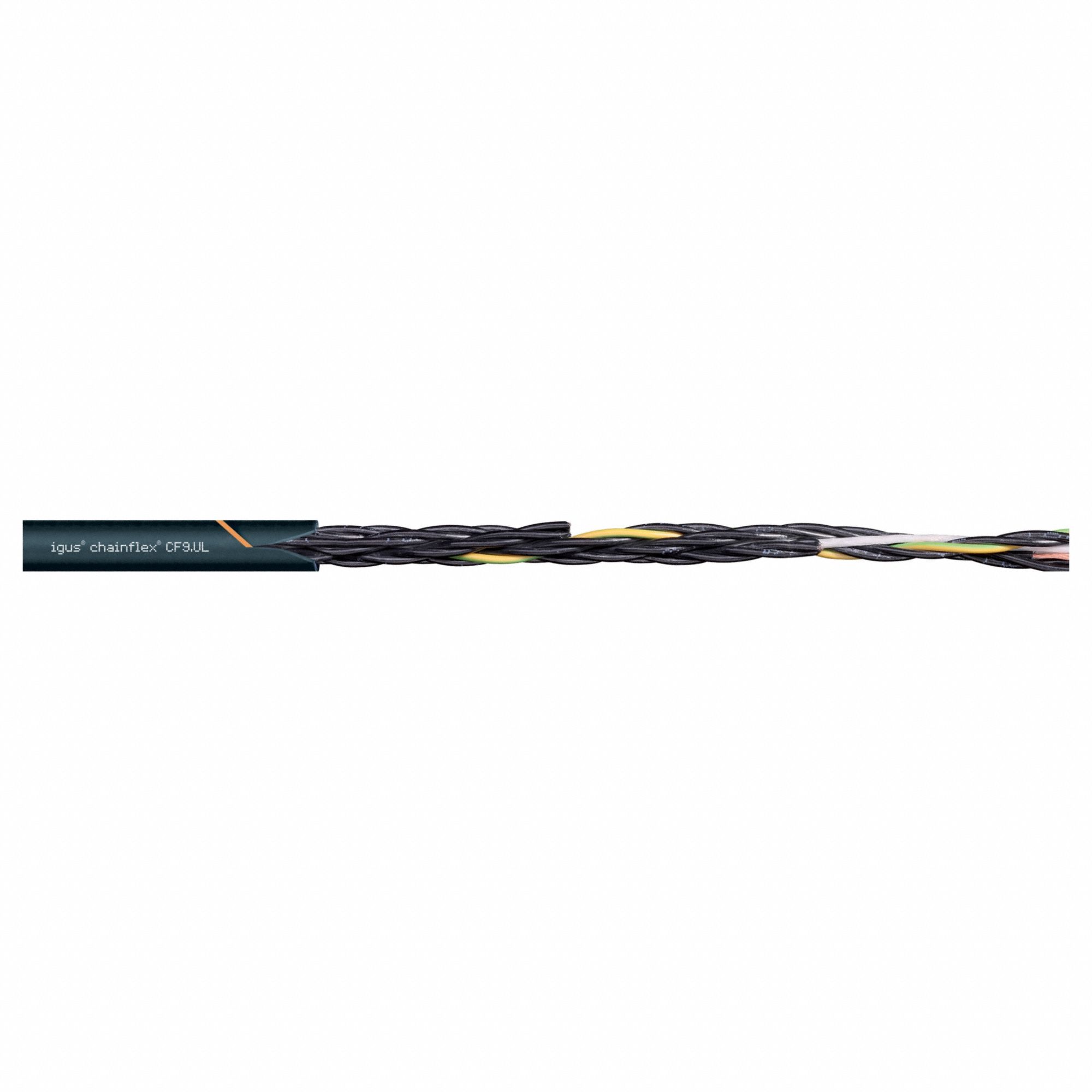

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex CF9-UL series. It features 25 conductors of single copper wire, a TPR jacket, and a 1,000 V rating, with oil and grease resistance per IPA 14644-1. The cable includes a ground conductor and has minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-15-25
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
