Chainflex 3G-OTH-45157 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45157 CHAINFLEX Motor Cable: 16 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF886-15-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: CSA.
Brand: Chainflex

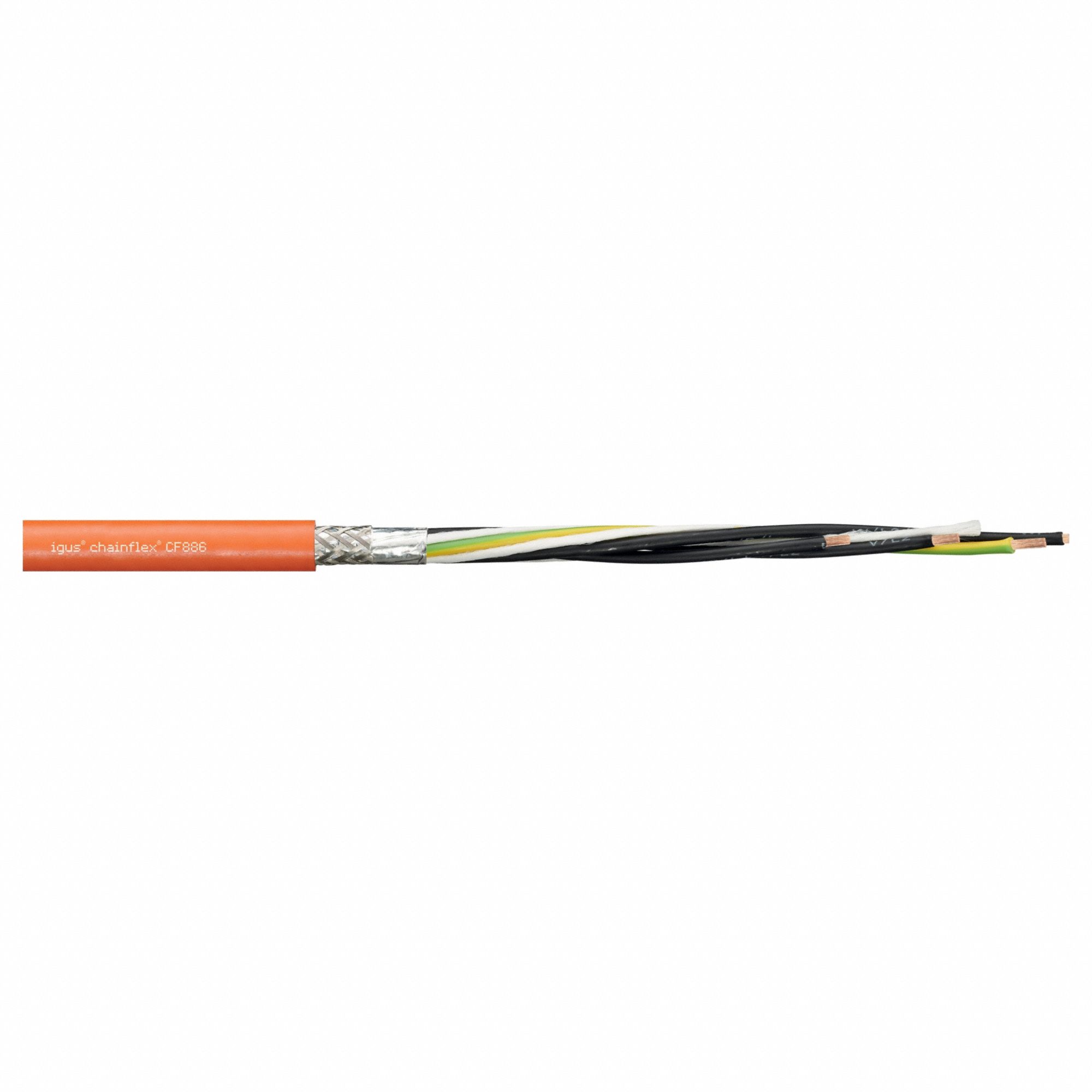

The CHAINFLEX Motor Cable: 16 AWG (SKU 801M50, MPN CF886-15-04) is a continuous flexing power cable for VFDs from the Chainflex series. This 4-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, and includes a ground, rated at 1,000 V. It is CSA certified, flame retardant, and has minimum bend radius factors of 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Cable Series	CF886
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF886-15-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
